Spring cable reels

AKAPP spring operated cable reels provide a safe and reliable power supply for mobile and moving equipment, both indoors and outdoors. Power cables and/or hoses are automatically wound and unwound in a controlled manner, ensuring continuous and reliable operation.
Request Quote

MADE FOR INDUSTRY

Our spring cable reels

AKAPP offers the ideal solution with a comprehensive range of spring-operated cable reels. These systems are mechanically driven by high-quality steel spiral springs, ensuring exceptional durability and a long service life. Our industrial spring cable reels are available with drum core diameters ranging from 123 mm to 600 mm, providing a reliable solution for a wide variety of applications. The standard designs feature galvanized flanges and drum bodies for optimal corrosion resistance and are suitable for demanding applications such as mobile crane systems, stacking equipment, marine environments, stage technology, intralogistics, and environmental applications.

Special “spiral” versions, such as the SPRING & MOTOR charging reels, are available for use in various types of charging systems. We will be happy to advise you personally on the best solution for your application.
Spring Cable reel AV-Compact series

AV-Compact series

7 standard configured models, cable type to be specified. Makes it easy and affordable!
Spring Cable reel AV-Industry series

AV-Industry series

Full range of reel bodies, flanges, springs and sliprings. Configuration and cable type to be specified
Charging reel spring driven

Charging reel SPRING

Internal spring operated reel for charging of electrical buses or trucks. CCS2 plug, max. 200A / 1.000VDC
Charging reel motor driven

Charging reel MOTOR

Motor control, automatic reel for charging of electrical buses or trucks. CCS2 plug, max. 200A / 1000VDC

Contact Us

Whether you are exploring new solutions or require support with an ongoing project, our team is here to help.
Contact us
Stay up to date
Wabtec Netherlands, location of Akapp-Stemmann
KEY PRODUCT INFORMATION

Product details

Spring Cable reel AV-Compact series

AV-Compact series

7 generic models suitable for a wide range of electrical, industrial applications. Galvanized flanches + powder coating (yellow RAL1018) and stainless steel bolds/nuts. Mounting bracket dimensions/holes according to industry standard (AM0951). Internal C-type springs integrated. Supply cable type always: H07RNF
  • Including mounting bracket and cable stop
  • Galvanized & powder coated (yellow) flanches
  • Cable type is to be specified
  • Offered at highly competitive pricing
Request Quote

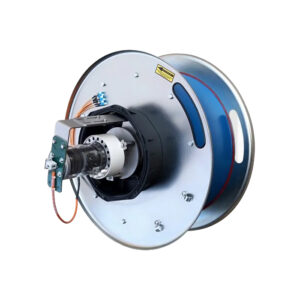

Spring Cable reel AV-Industry series

AV-Industry series

Wide range of industrial, reliable spring cable reels, designed for use in a wide range of demanding industrial environments.
  • Wide range of internal slipring assemblies (52 models)
  • Current capacity from 4mA up to 200A (higher on request)
  • Wide range of reel bodies and flanches
  • Galvanized, powder coated and/or stainless steel
  • Protection degree IP55, IP66 on request
Request Quote
Charging reel spring driven

Charging reel SPRING

Spiral type spring operated charging reel, designed for electrical bus or truck charging.
  • Max 200A / 1.000VDC
  • Maximum cable reeling length 7m
  • Outer diameter Ø900mm
  • Polyester finish RAL5010
  • Protection class IP65/IP66
Request Quote
Charging reel motor driven

Charging reel MOTOR

Developed and manufactured by Stemmann-Technik, a Wabtec company.

Spiral type motor controlled charging reel, designed for electrical bus or truck charging.
  • Outer diameter Ø900mm
  • Max 200A / 1.000VDC
  • Maximum cable reeling length 7m
  • Lowing & raising time, each <20sec.
Request Quote

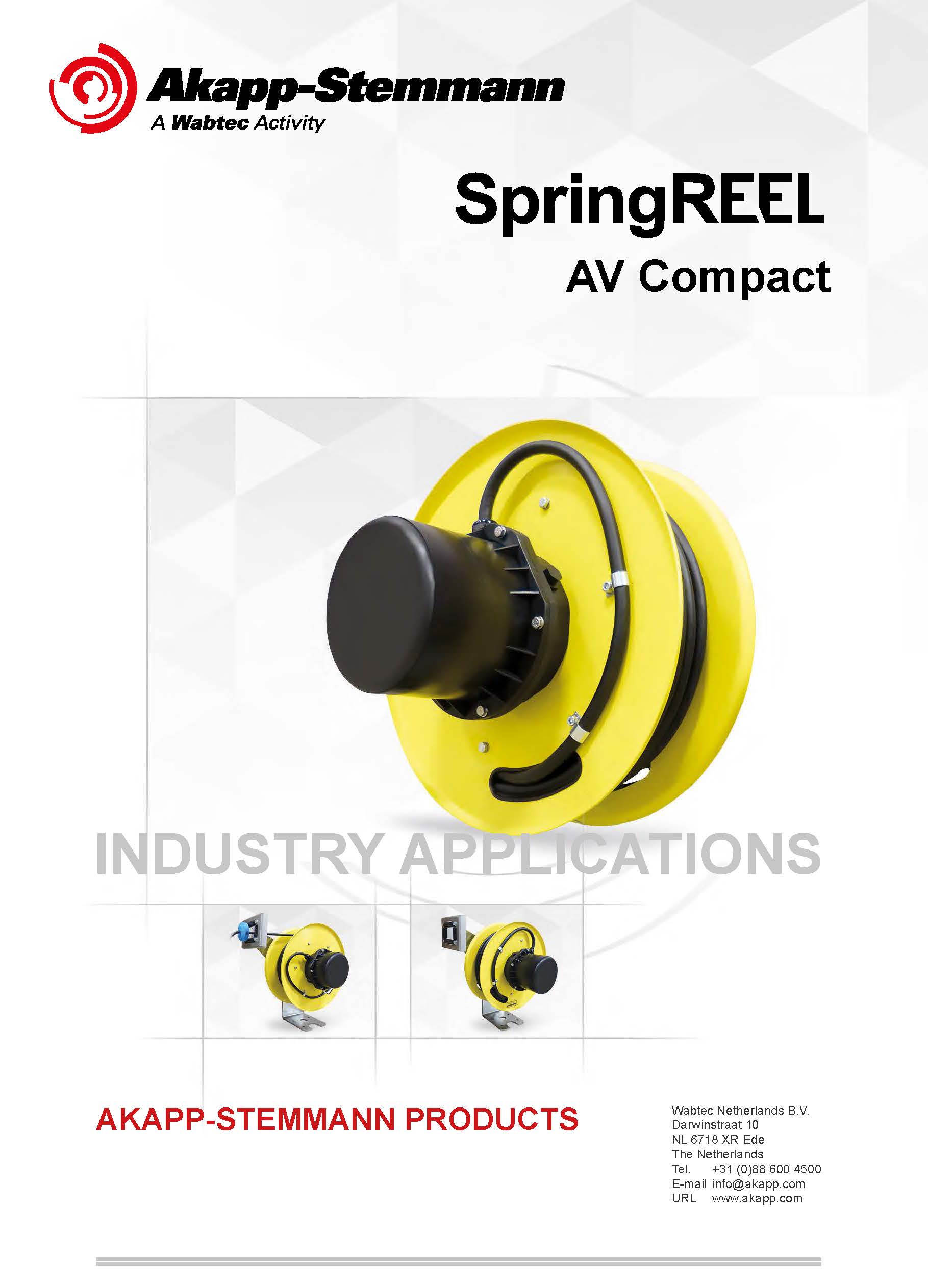

AV-Compact model

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

AV-Compact model

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

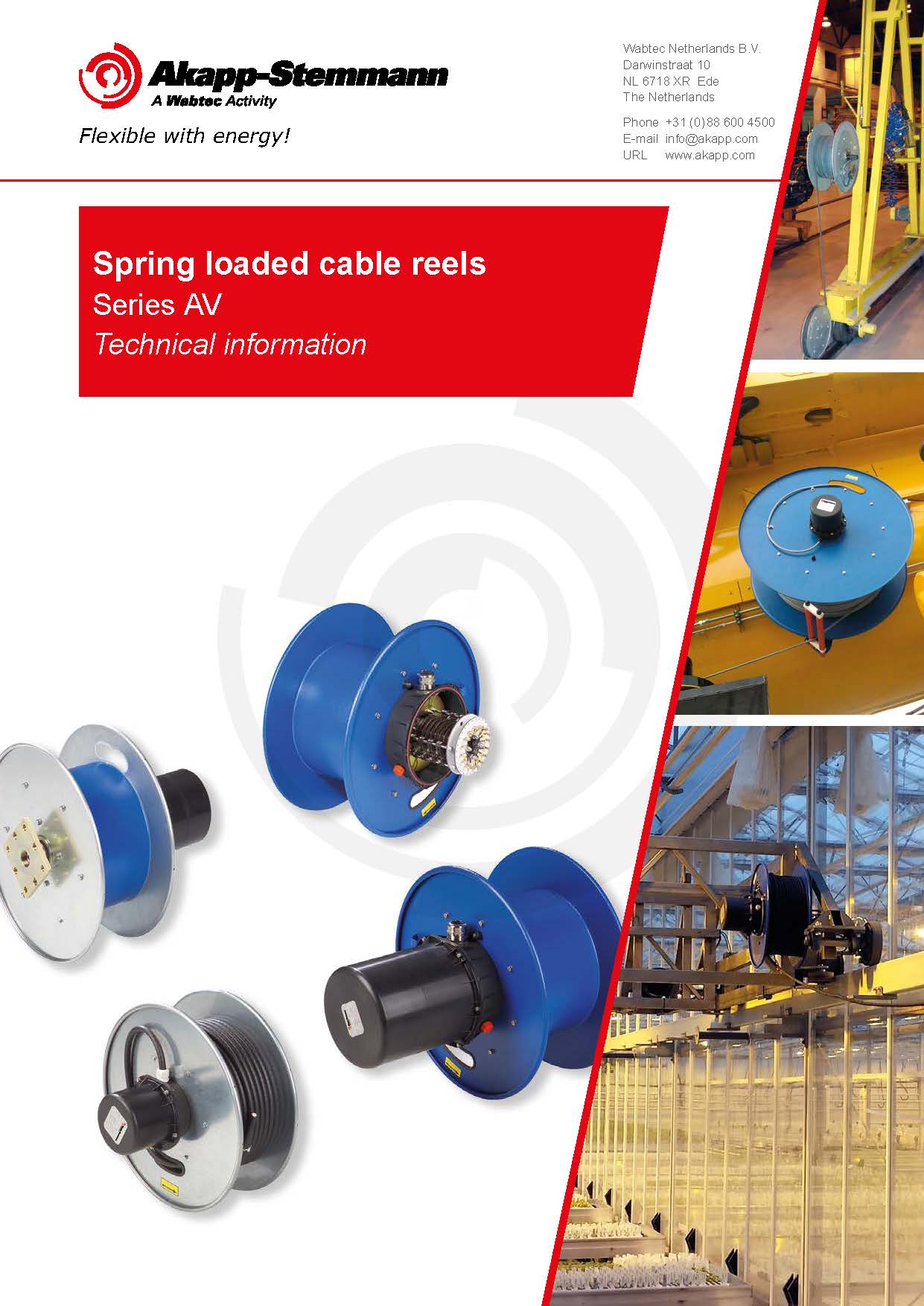

AV-Industry series

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

AV-Industry series

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

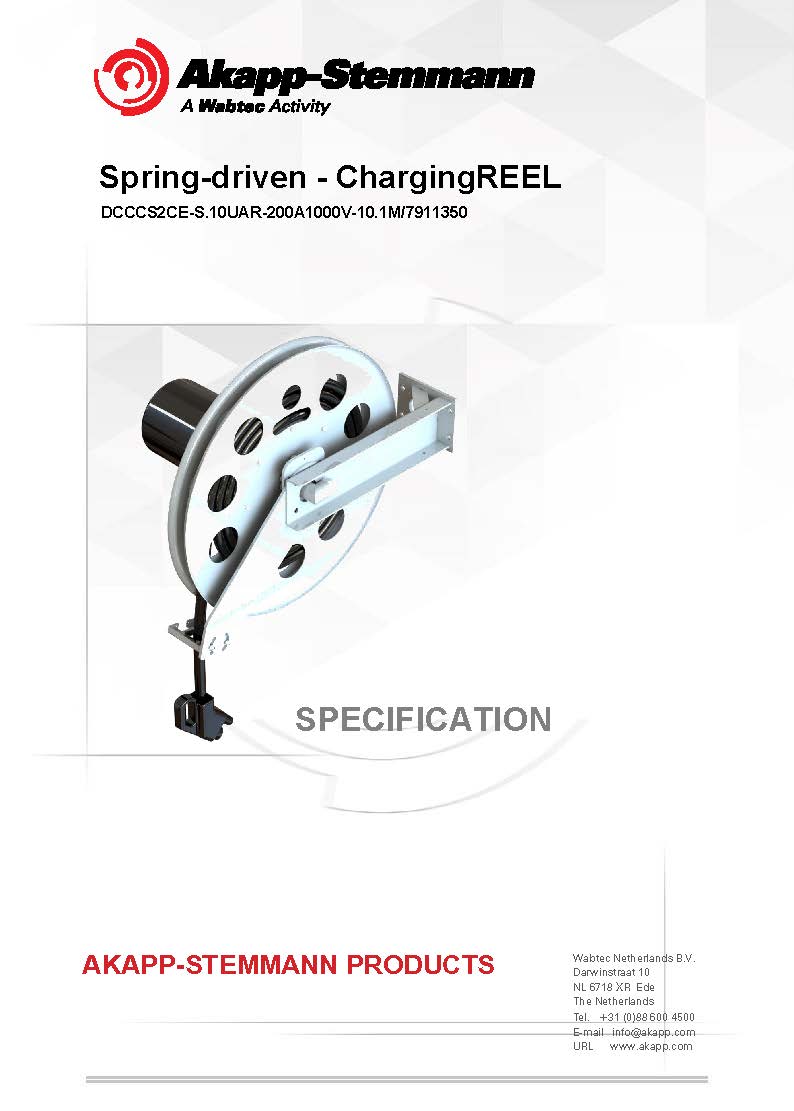

Charging reel SPRING

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

Charging reel SPRING

Language: English

Document type: Brochure
Product family: Spring cable reels
Download here

Questionnaire Spring cable reel

Language: English

Document type: Questionnaire
Product family: Spring cable reels
Download here

Questionnaire Spring cable reel

Language: English

Document type: Questionnaire
Product family: Spring cable reels
Download here
Access all downloads
