PR2 2-pole conductor bar system

The Pro-Ductor PR2 is an open conductor bar system for the power supply of moving equipment, such as shuttle systems and transfer cars. It offers a reliable and compact solution for high-speed intralogistics applications.

2-pole open conductor bar system

Request Quote

2-pole configurations

Fast acceleration and deceleration

No mechanical joints

Touch-safe design

PR2 conductor bar with pvc housing rail and current collector — PR2 conductor bar with current collector

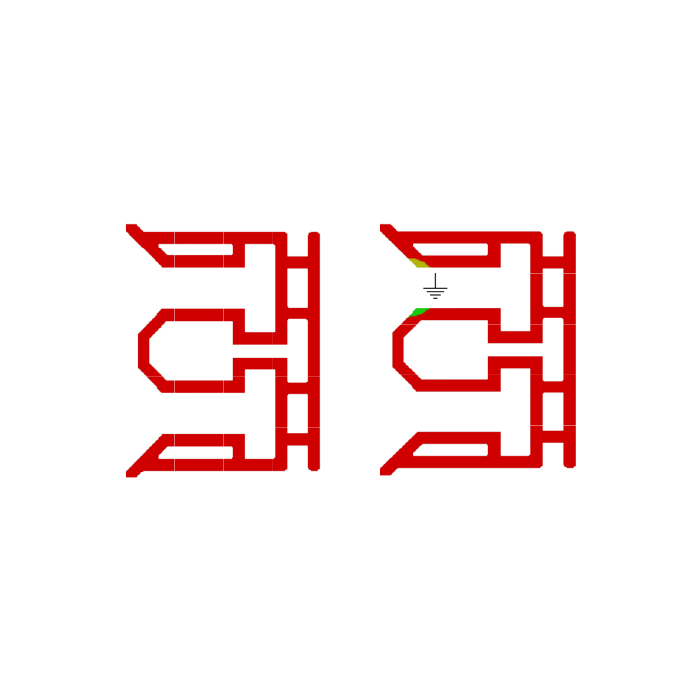

PR2 cross section of conductor bar in two different options — Cross-section conductor bar, showing 2 poles

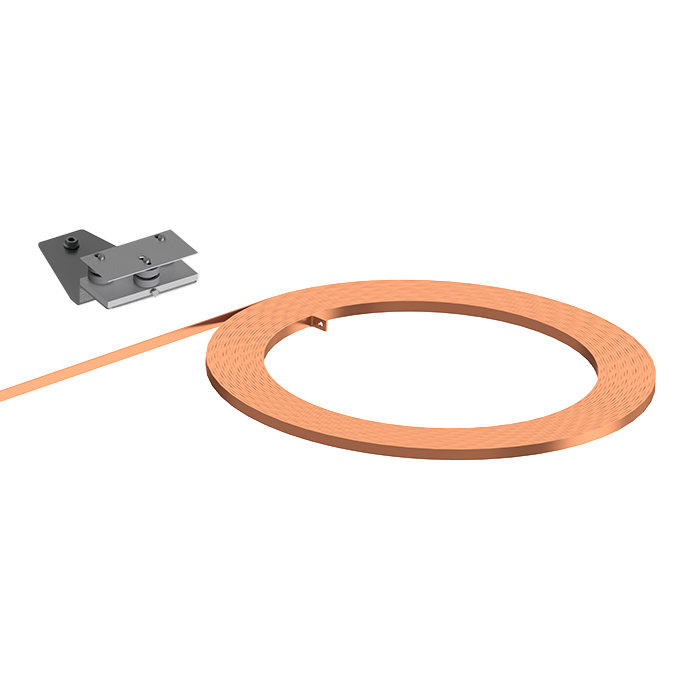

Copper cassette with copper puller — Copper cassette with integrated puller for continuous copper conductors

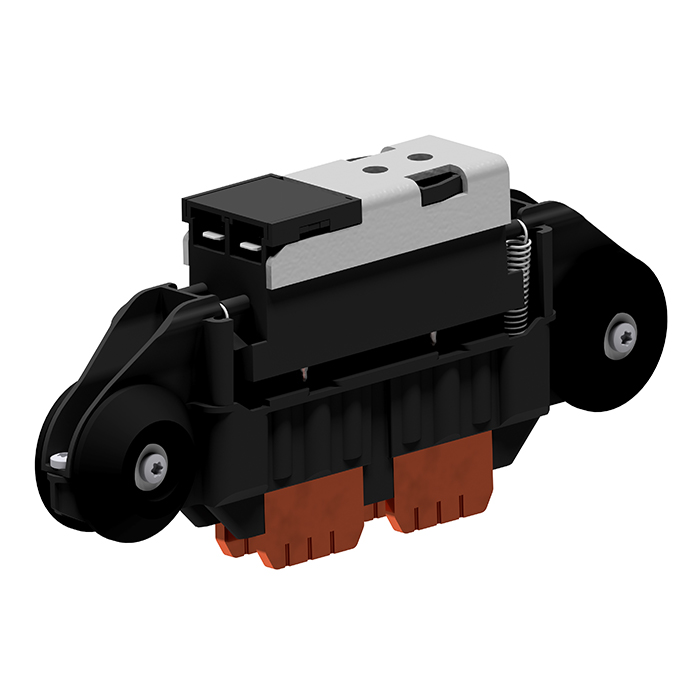

Wheel guided, spring supported current collector for PCT2 — Current collector, 35A

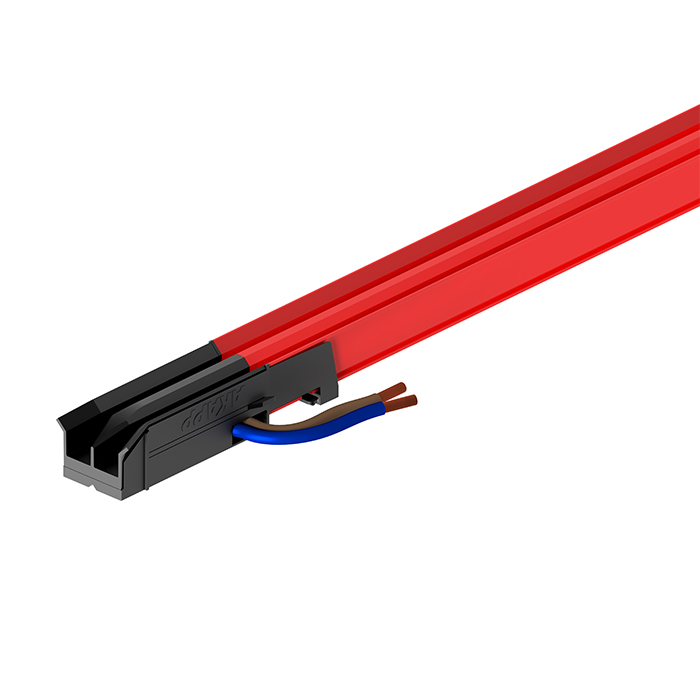

PVC rail with transferguide and power feed option — Transfer guide, with power feed option

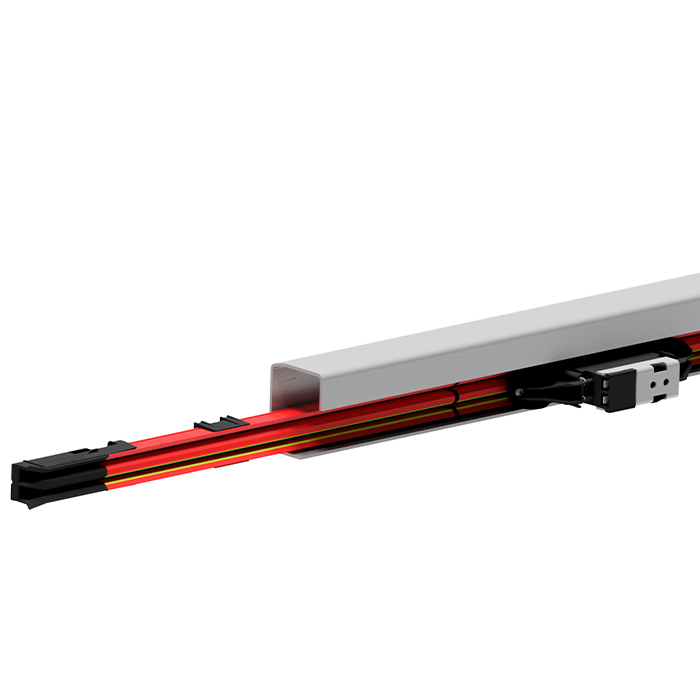

PR2 conductor bar mounted in track rail with current collector — Conductor bar mounted in track rail

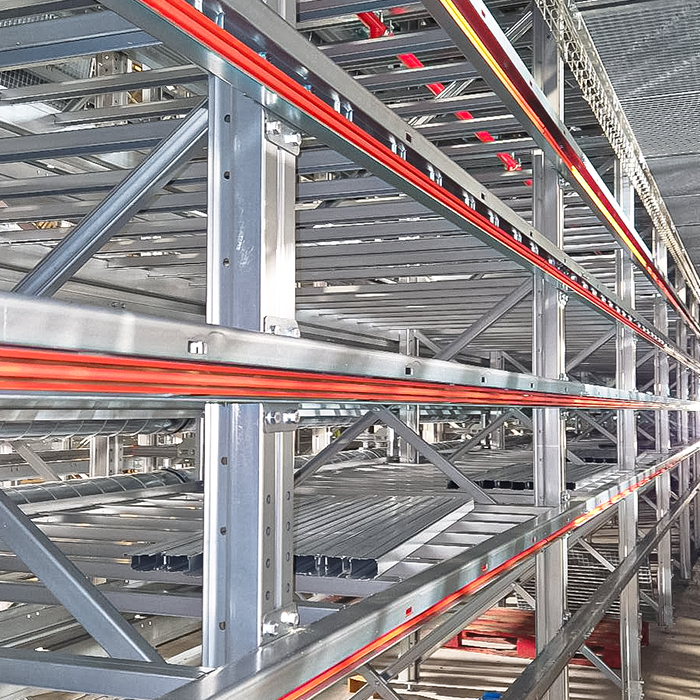

PR2 installation in shuttle werehouse — On-site PR2 installation

PR2 for shuttle applications

Reliability is the core of the new 2-pole conductor bar system, developed to meet the growing demand for compact conductor bar solutions. Leading manufacturers of shuttle systems require specific solutions to ensure compact, touch‑safe integration at high speeds with consistent contact pressure.

To meet these requirements, the PR2 uses a wheel guided and spring supported current collector that enables fast and efficient material transport while ensuring stable power transfer. This supports intensive usage cycles and delivers maximum uptime in demanding intralogistics operations.

The PR2 system builds on the strengths of our open conductor bar portfolio, offering flexible configurations that can be adapted to any shuttle track layout. For PR2, this includes the use of specially designed funnels that ensure precise collector alignment during transitions between paths, supporting reliable operation in multi‑directional shuttle layouts.

Key Features

2‑pole system, up to 100 A
Travel speed up to 500m/min
Continuous copper conductors for minimal resistance points
Wheel guided /spring support current collector

Request Quote

Download brochure

LEARN ABOUT

Continuous Copper Technology with Akapp LongLife

AKAPP LongLife conductor bar systems use continuous copper conductors to eliminate mechanical joints and minimise transition resistance. The smooth, uninterrupted contact surface reduces heat build-up and wear on collector trolleys, ensuring reliable power transmission, longer carbon brush life and lower maintenance requirements.

Learn more about the LongLife advantages

KEY PRODUCT INFORMATION

Product details

Electrical specifications

Rail system capacity

100A 100% DC (Duty Cycle), 125A 80% DC

Rated current collector trolley

Max 35A at 100% Duty cycle

Nominal voltage with protective earth (PE)

Max 600V AC

Nominal voltage without protective earth (PE)

Max 48V AC/DC

Number of poles

Assignment

2 phases, 1 phase + PE, 1 phase + zero

Conductor material

Copper

Mechanical specifications

Max travel speed

500m/min, 30km/h

Direction of travel

Two- way

Gap between the poles

15.2mm

Suspention distance (between mounting brackets)

800mm

System dimensions

Max. System length

130meters

Power rails

Max 4000mm standard rail length

85mm to 3970mm on request

Minimum track length

253mm total length - 199mm usable length

External dimensions

36.1/39.5 x 98mm

Operating conditions

Temperatuur range

-30 to 60°C

Max operating temperature difference

Depending on the track layout

Max. relative humidity

95%

Installation environment

Indoors

Protection class

IP2XB

Tolerances

Conductor bars

Horizontal (X) ±3mm

Vertical (Y) ±1mm

PCT current collector operating tolerances:

Horizontal (X) ±5mm

Vertical (Y) ±5mm

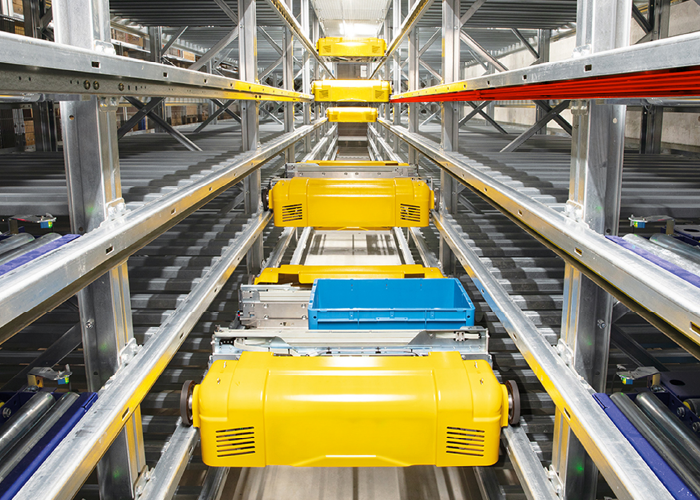

Shuttle system operating in intralogistics with horizontal transport paths

Shuttle Systems

Shuttle systems are widely used in intralogistics for high-speed storage and order picking. They enable efficient use of space and support continuous material flow in automated warehouses. With high reliability and 24/7 availability, shuttles ensure a efficient material flow—ideal for e-commerce, production environments, and fulfillment operations that demand top performance.

The AKAPP PR2 conductor bar system offers a low-profile and efficient power supply tailored to these conditions. Its compact design supports reliable power transmission in installations with limited space.

Mini-load ‘Light’ Cranes

Mini-load ‘light’ cranes play a vital role in modern intralogistics, enabling fast and automated storage and retrieval of small parts with outstanding precision and space efficiency. As these machines become faster, more compact, and significantly lighter, the need for equally efficient and lightweight power supply solutions continues to rise.

AKAPP’s 2-pole conductor bar system supports these developments with a compact and reliable power supply specifically suited to new-generation mini-load cranes. Its slim profile allows easy integration into narrow crane structures, ensuring stable operation.

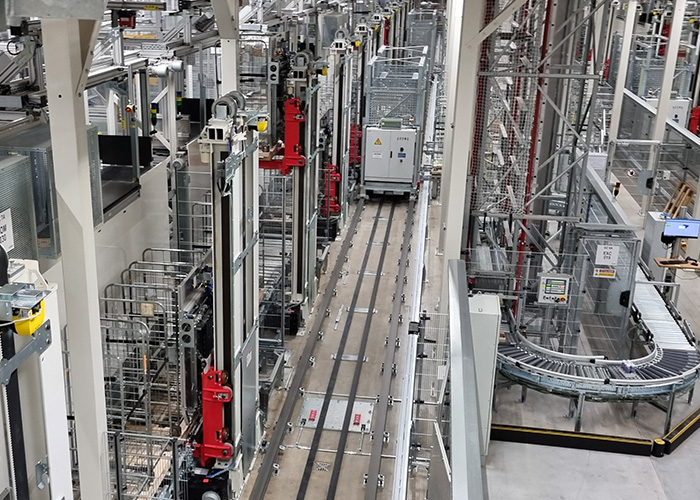

Automated transfer car powered by conductor rail in a warehouse transport

Transfer Cars

Transfer cars play an important role in modern intralogistics, enabling fast and reliable cross-aisle transport to keep material flows running efficiently. Because transfer cars operate with frequent starts, stops, and lateral movements, a conductor bar system such as PR2 offers a stable and space-efficient power supply that supports continuous operation. Its compact profile ensures reliable power transmission even in installations with very limited mounting space.

When additional IP protection is required, we recommend using Akapp Multiconductor systems.
