PR7 7-pole conductor bar system

The Pro-Ductor PR7 is a 7-pole open conductor bar system for AS/RS and werehouse automation with large cranes and machines. With current capacities up to 400 A and space for multiple power, control and signal conductors, the PR7 is designed for various intralogistics applications.

7-pole open conductor bar system

The Pro-Ductor PR7 is an open conductor bar system for the power supply of moving equipment, such as AS/RS and werehouse automation with large cranes and machines.

Request Quote

Up to 7-pole configurations

Current capacity up to 400 A

No mechanical joints

Touch-safe design

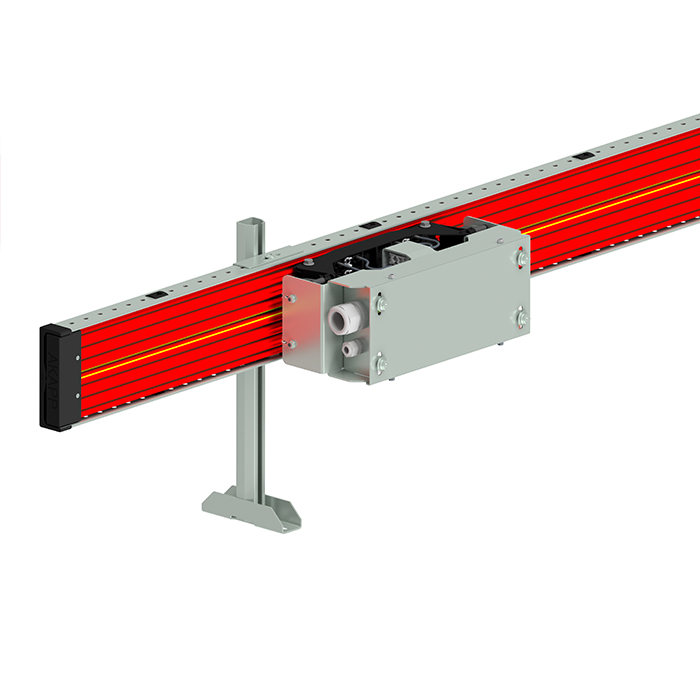

PR7 conductor bar with current collector

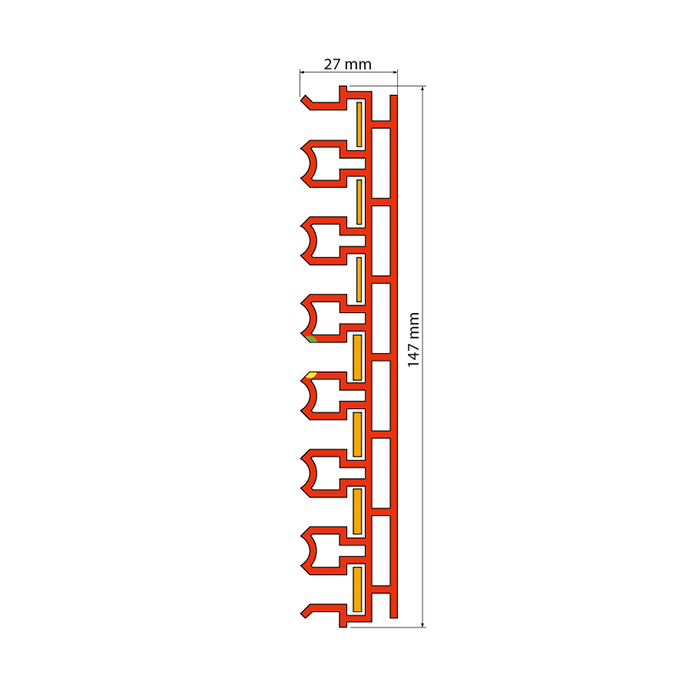

PR7 cross section of conductor bar — Cross-section conductor bar, showing 7 poles.

Copper cassette for continuous copper conductors

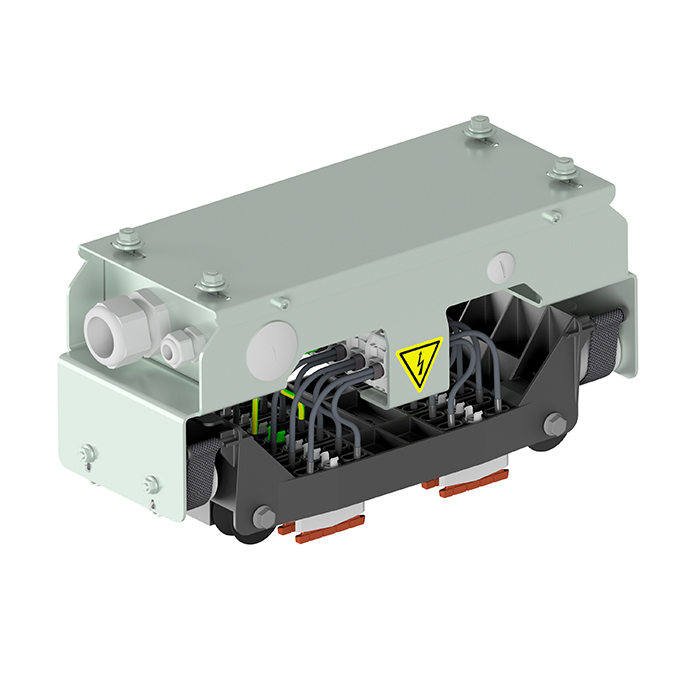

PCT7-7-125 BI Q35 current collector — Current collector, up to 125A

PCT7-7-125_Q35 current collector — Current collector with overhead connection box

PR7 for AS/RS and warehouse automation

7‑pole electrical power supply systems are commonly used in AS/RS and warehouse automation for larger cranes and machines. In these applications, the AKAPP Pro‑Ductor PR7 system is often configured with two sets of three phases plus ground (or neutral) to deliver the required power.

Where a single three‑phase plus ground (or neutral) supply is sufficient, the 7‑pole PR7 conductor rail profile is also used for systems that require additional conductors for control/signaling. Thanks to the five different copper conductor cross‑sections available, the system can be precisely tailored to meet specific application requirements.

Key Features of the PR7

7‑pole system, up to 400 A
Travel speed up to 500m/min
Continuous copper conductors for minimal wear
Wheel guided /spring support current collector
Suitable for horizontal and vertical operation
Typical applications: Stacker/pallet (RGB) cranes, miniload (AKL) cranes, transfer cars

Request Quote

Download brochure

LEARN ABOUT

Continuous Copper Technology with Akapp LongLife

AKAPP LongLife conductor bar systems use continuous copper conductors to eliminate mechanical joints and minimise transition resistance. The smooth, uninterrupted contact surface reduces heat build-up and wear on collector trolleys, ensuring reliable power transmission, longer carbon brush life and lower maintenance requirements.

Learn more about the LongLife advantages

KEY PRODUCT INFORMATION

Product details

Electrical specifications

Rated current, copper conductor models, at 80% duty cycle:

CU50 (8,82 mm2

50A

CU80 (13,75 mm2)

80A

CU125 (25 mm2)

125A

CU160 (32,50 mm2)

160A

CU200 (50 mm2)

200A

CU50/AG silver plated (8,82 mm2)

50A

Rated voltage with protective/earth conductor

690V (CE), 600V (UL)

Minimum operating parameters

Umin. 24V, Imin. 1A (manufacturer recommendation)

Number of poles

Max. 7

Conductor material

Copper

Conductor type

Flat type, continuous

Protection class

IP2X

Current collectors

All models, wheel guided:

Available in 4,, 5-, 6- and 7-pole configurations (see brochure)

Model: PCT7-…-125/BI

‘Side’ connection box, cable gland M40 & M20

Current capacity max. 125A (at 80% duty cycle)

Double carbon brushes per channel, individual spring supported

Model: PCT7-…-125

‘Top’ connection box, cable gland M40 & M20

Current capacity max. 125A (at 80% duty cycle)

Double carbon brushes per channel, individual spring supported

Model: PCT7-…-125/…M

3m or 5m cable (10mm²) output, length depending on model

Current capacity max. 125A (at 80% duty cycle)

Double carbon brushes per channel, individual spring supported

Other models, on request

Mechanical specifications

Max travel speed

500m/min, 30km/h

Phase distance

21,1mm between channels

PR7 rail insulation material

PVC

Flammability of PR7 rail housing

flame retardant, self-extinguishing, UL 94 V0

Max. suspension distance, (with SP7 support profile)

3300mm

Mounting bracket types:

With bolds/nuts, on upright/support post

SP7-MB model (see brochure)

With self-drilling screws, on upright/support post

SP7-MB/SDS model (see brochure)

Clamping on closed uprights

SP7-MBC.. models (see brochure)

Clamping on HEA-260 profiles

SP7-MBC-HEA260 model (see brochure)

System dimensions & approvals

Standard length PR7 rail, and SP7 support profile

4m.

Customized, smaller lengths (Filler pieces)

On request

System dimensions, including SP7 support profile

45x165mm

Local approvals

CE approved, UL certified

Operating conditions

Operating temperature range

-30⁰C to +60⁰C

Application

Indoor systems

AS/RS warehouse shuttle system with Akapp Pro-Ductor conductor bar

Storage and Retrieval Cranes (AS/RS)

Storage and retrieval cranes are used in high bay automated warehouses for the handling of palletized or box size loads. As these automated storage systems depend on 24h operation power demand requires stable and 24h availability at the lowest total cost of ownership. Three-phase power is typically used to support drive and lifting systems.

The Akapp 7-pole conductor bar system PR7 provides reliable power supply for these applications, enabling stable energy transmission over long travel distances. And minimizing wear/maintenance.

Automated stacker crane system handling palletized goods in a high-bay warehouse

Stacker/pallet (RGB) cranes

Stacker cranes are used in automated warehouses for the storage and retrieval of palletized goods and heavy loads. Operating over long travel distances and handling significant loads, these systems require a stable and continuous power supply to support reliable movement and lifting operations.

The Akapp PR7 conductor bar system is developed for larger warehouse automation applications. Its 7-pole configuration allows power and additional control signals to be combined in a single system, supporting efficient operation in high-capacity AS/RS installations.

Automated storage and retrieval system (AS/RS) with shuttle systems using conductor bar

Miniload (AKL) cranes

Miniload cranes are used in automated warehouse systems to store and retrieve totes, trays, and other small-load carriers. As warehouse systems become larger and more automated, reliable power supply and control functions are essential for efficient operation.

The Akapp PR7 conductor bar system is well suited for these applications. Its 7-pole configuration supports both power transmission and additional control functions, helping ensure reliable operation in automated warehouse environments.

Automated transfer car powered by conductor rail in a warehouse transport

Transfer cars

Transfer cars are used to transport materials and products between production areas, storage locations, and transfer points. Often operating over long travel distances and carrying heavy loads, these systems require a reliable power supply to maintain efficient material flow.

The Akapp PR7 conductor bar system is well suited for these applications. Its 7-pole configuration provides a dependable power supply for larger transfer car systems, supporting reliable operation throughout the transport process.
