PR10 10-pole conductor bar system

The Pro-Ductor PR10 is a 10-pole open conductor bar system for pallet cranes, stacker cranes and other heavy-duty moving equipment. With current capacities up to 400 A and space for multiple power, control and signal conductors, the PR10 is designed for demanding intralogistics applications.

10-pole open conductor bar system

The Pro-Ductor PR10 is an open conductor bar system for the power supply of moving equipment, such as stacker cranes and pallet cranes. It is designed for large and heavy-duty machines that require reliable power transmission in demanding intralogistics applications.

Request Quote

Up to 10-pole configurations

Current capacity up to 400 A

Equipped for heavy machinery

Touch-safe design

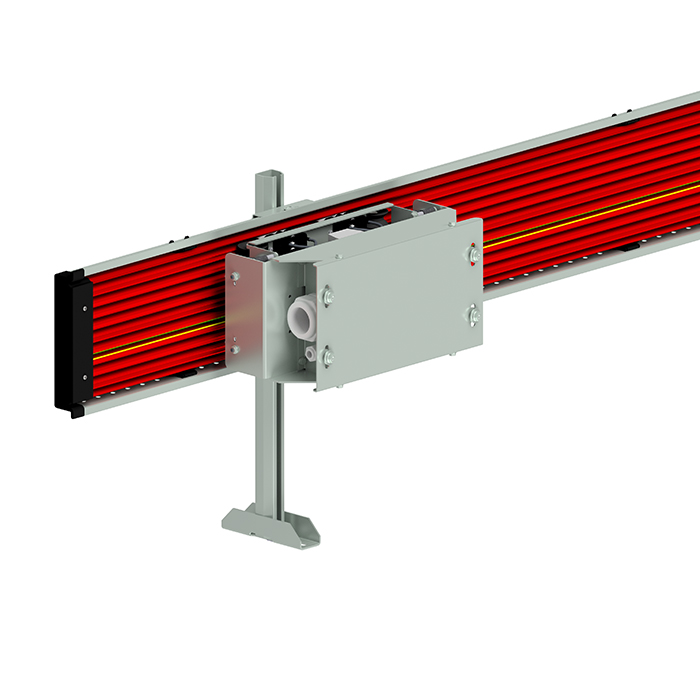

PR10 conductor bar with current collector

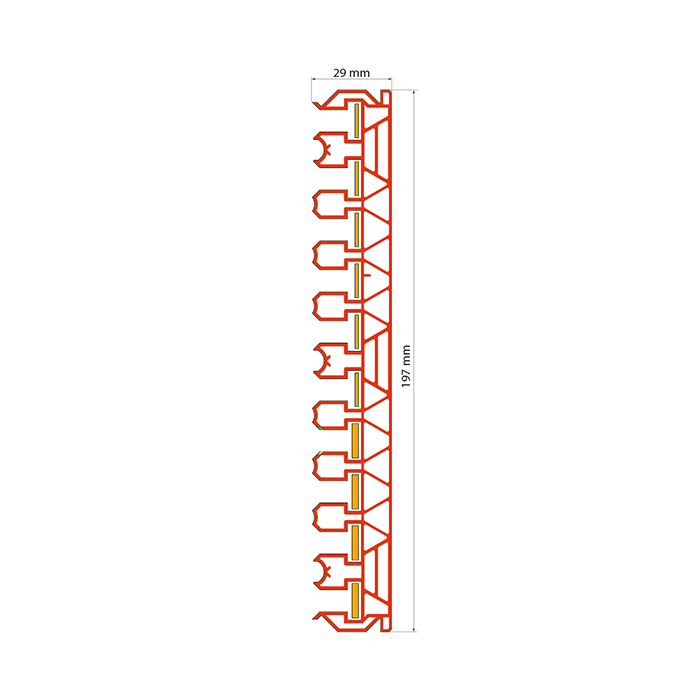

PR10 cross section of conductor bar v2 — Cross-section conductor bar, showing 10-poles

Copper cassette for continuous copper conductors

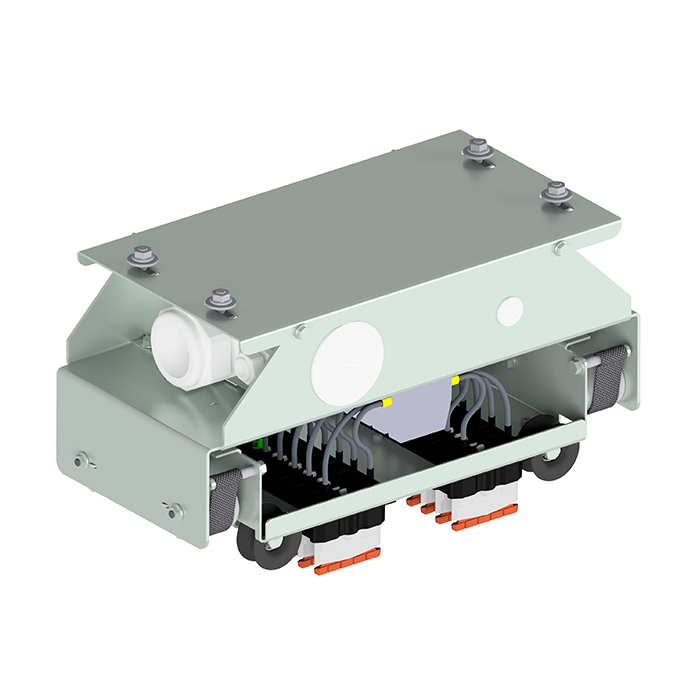

PCT10-10-125BI current collector — Current collector, up to 125A

Connecting housing with connecting set

PR10 for pallet cranes

The AKAPP Pro‑Ductor 10-pole conductor bar system is based on the largest conductor rail profile in our portfolio, offering space for up to ten continuous copper conductors. This makes it suitable for supplying power to large and heavy machines.

Typical configurations include three independent three‑phase supplies integrated into a single conductor rail system, with additional capacity available for extra control and signaling conductors, which can be implemented with different copper conductor cross‑sections if required.

The AKAPP LongLife technology delivers unmatched reliability, minimal maintenance costs, and maximum system availability.

Key Features of the PR10

10‑pole system, up to 400 A
Travel speed up to 500m/min
Continuous copper conductors for minimal wear
Wheel guided /spring support current collector
Typical applications: Stacker/pallet (RGB) cranes

Request Quote

Download brochure

LEARN ABOUT

Continuous Copper Technology with Akapp LongLife

AKAPP LongLife conductor bar systems use continuous copper conductors to eliminate mechanical joints and minimise transition resistance. The smooth, uninterrupted contact surface reduces heat build-up and wear on collector trolleys, ensuring reliable power transmission, longer carbon brush life and lower maintenance requirements.

Learn more about the LongLife advantages

KEY PRODUCT INFORMATION

Product details

Electrical specifications

Rated current, copper conductor models, at 80% duty cycle:

CU50 (8,82 mm2

50A

CU80 (13,75 mm2)

80A

CU125 (25 mm2)

125A

CU160 (32,50 mm2)

160A

CU200 (50 mm2)

200A

CU50/AG silver plated (8,82 mm2)

50A

With 2x 3-fases parallel, max. system rating

400A

Rated voltage with protective/earth conductor

690V (CE), 600V (UL)

Minimum operating parameters

Umin. 24V, Imin. 1A (manufacturer recommendation)

Number of poles

Max. 10

Conductor material

Copper

Conductor type

Flat type, continuous

Protection class

IP2X

Current collectors

All models, wheel guided:

Available in 6-, 8-, 9- and 10-pole configurations (see brochure)

Model: PCT10-…-125/BI

‘Side’ connection box, cable gland M63 & M20

Current capacity max. 125A (at 80% duty cycle)

Double carbon brushes per channel, individual spring supported

Mechanical specifications

Max travel speed

500m/min, 30km/h

Phase distance

Between channels 1 en 2: 21mm

Between channels 2, 3, 4(earth) and 5: 18,5mm

Between channels 5 and 6: 21mm

Between channels 6 and 7 and 8 and 9: 18,5mm

Between channels 9 and 10: 21mm

PR10 rail insulation material

PVC

Flammability of PR10 rail housing

flame retardant, self-extinguishing, UL 94 V0

Max. suspension distance, (with SP10 support profile)

3300mm

Mounting bracket types:

With bolds/nuts, on upright/support post

SP10-MB model (see brochure)

With self-drilling screws, on upright/support post

SP10-MB/SDS model (see brochure)

System dimensions & approvals

Standard length PR10 rail, and SP10 support profile

4m.

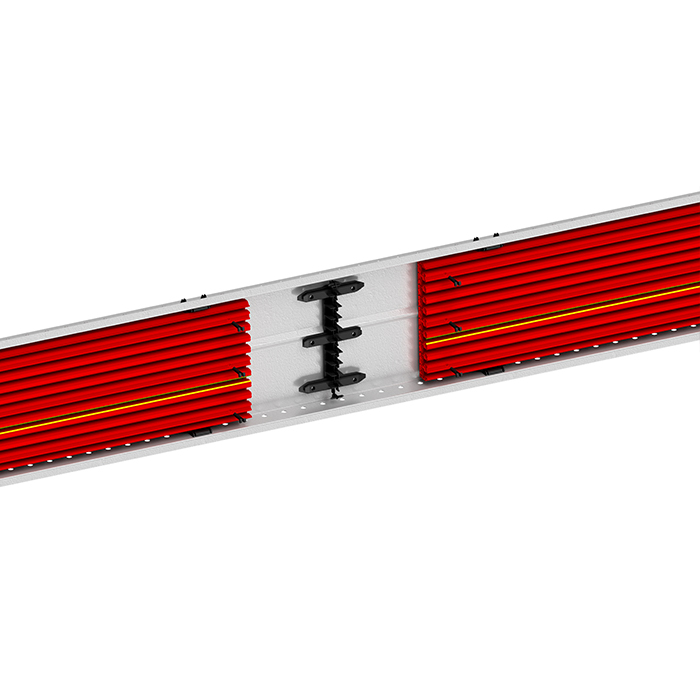

Connection joint, PR10-J

mm (between two PR10 rail sections)

Customized, smaller lengths (Filler pieces)

On request

System dimensions, including SP10 support profile

45x165mm

Local approvals

CE approved, UL certified

Operating conditions

Operating temperature range

-30⁰C to +60⁰C

Application

Indoor systems

AS/RS warehouse shuttle system with Akapp Pro-Ductor conductor bar

Storage and Retrieval Cranes (AS/RS)

Storage and retrieval cranes are used in automated warehouses for the handling of palletized or box size loads. As these automated storage systems depend on 24h operation power demand requires stable and 24h availability at the lowest total cost of ownership. Three-phase power is typically used to support drive and lifting systems.

The Akapp 10-pole conductor bar system PR10 provides reliable power supply for these applications, enabling stable energy transmission over long travel distances. And minimizing wear/maintenance.

Automated stacker crane system handling palletized goods in a high-bay warehouse

Stacker/pallet (RGB) cranes

Stacker cranes are used in large & high bay automated warehouses for the storage and retrieval of palletized goods and heavy loads. As these installations increase in size and complexity, multiple power supplies are often required to support crane travel, lifting systems, and additional equipment.

The Akapp PR10 conductor bar system is designed for these demanding applications. With up to ten conductors in a single profile, it supports multiple power circuits within one system, making it a flexible and reliable solution for large AS/RS crane installations.
